Re: Nickshu's '64 Spyder Restoration Thread
Posted by: Spectre ()
Date: February 10, 2016 09:11AM

Nickshu Wrote:
-------------------------------------------------------
> Oh joy I get to take my unipack back out...my
> clutch won't release fully, or something is
> preventing separation. Something going on inside
> the bell housing. Thinking the pilot bushing or
> disc too thick.
>
> Fun fun!

Disk in backwards? One side should say "Flywheel Side", but you probably knew that. Still, we are all only human and do make simple mistakes from time to time.

David Clamp


1965 Corsa convertible - 140 4spd/3.55/AM-FM

2013 Mustang GT convertible - 5.0, 6spd auto, Procharger i-1

2003 Miata SE - 6spd manual (wife's toy)

"Victory is mine!" - SG

Norman, OK

Options: ReplyQuote
Re: Nickshu's '64 Spyder Restoration Thread
Posted by: Mel ()
Date: February 10, 2016 09:34AM

Can you run it for a while to wear the disc in??? might be a bit too thick ?

Orangeville, Ontario. CANADA

Options: ReplyQuote
Re: Nickshu's '64 Spyder Restoration Thread
Posted by: Nickshu ()
Date: February 10, 2016 10:51AM

Disc is in the right way...the one I have (from Ken Hand) will only go in one way b/c the nose on the forward side of it would hit the flywheel if installed backwards. Ken also did my flywheel and pressure plate. It all seemed to go together easily, but I did not bench test the assembly before installing.

I pressed the pilot bushing (new) in to be 1/8" below the crank face per the shop manual. However I did not bottom it out, so I suspect it may be just up enough to bind the input shaft.

I did not measure the disc before install but it's binding pretty. Will try a 4th gear slip before taking the engine out but I am not hopeful. The clutch does disengage but something is dragging. Even when I overadjust the cable very tight (just to test) w/ the pressure point on the petal at or above the top I still get binding.

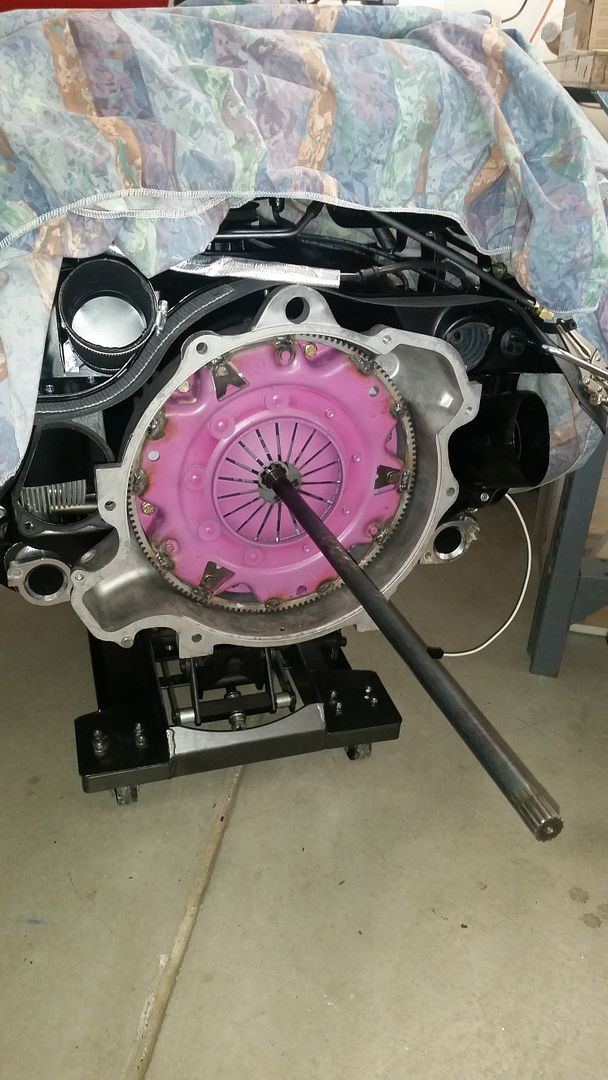

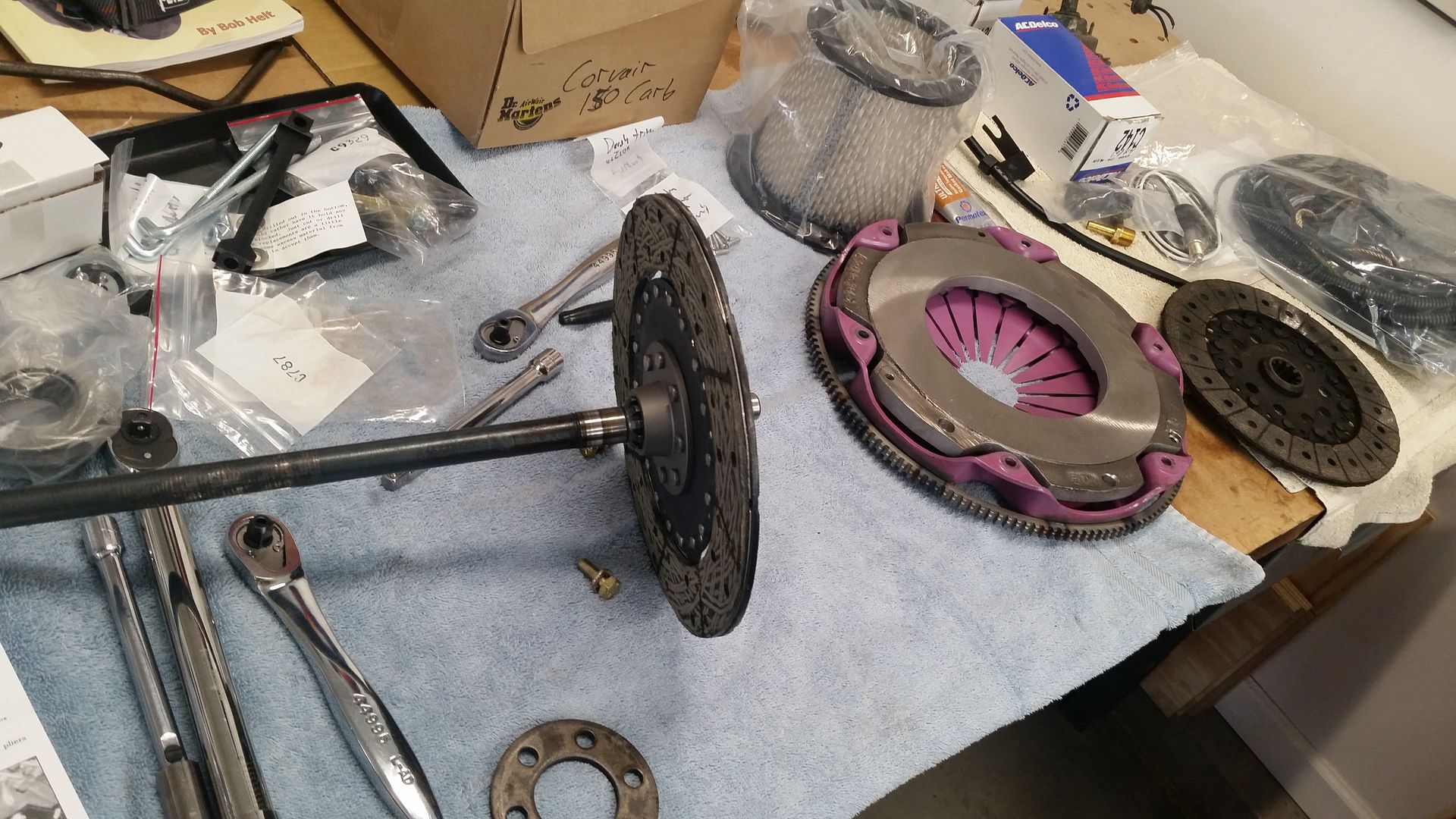

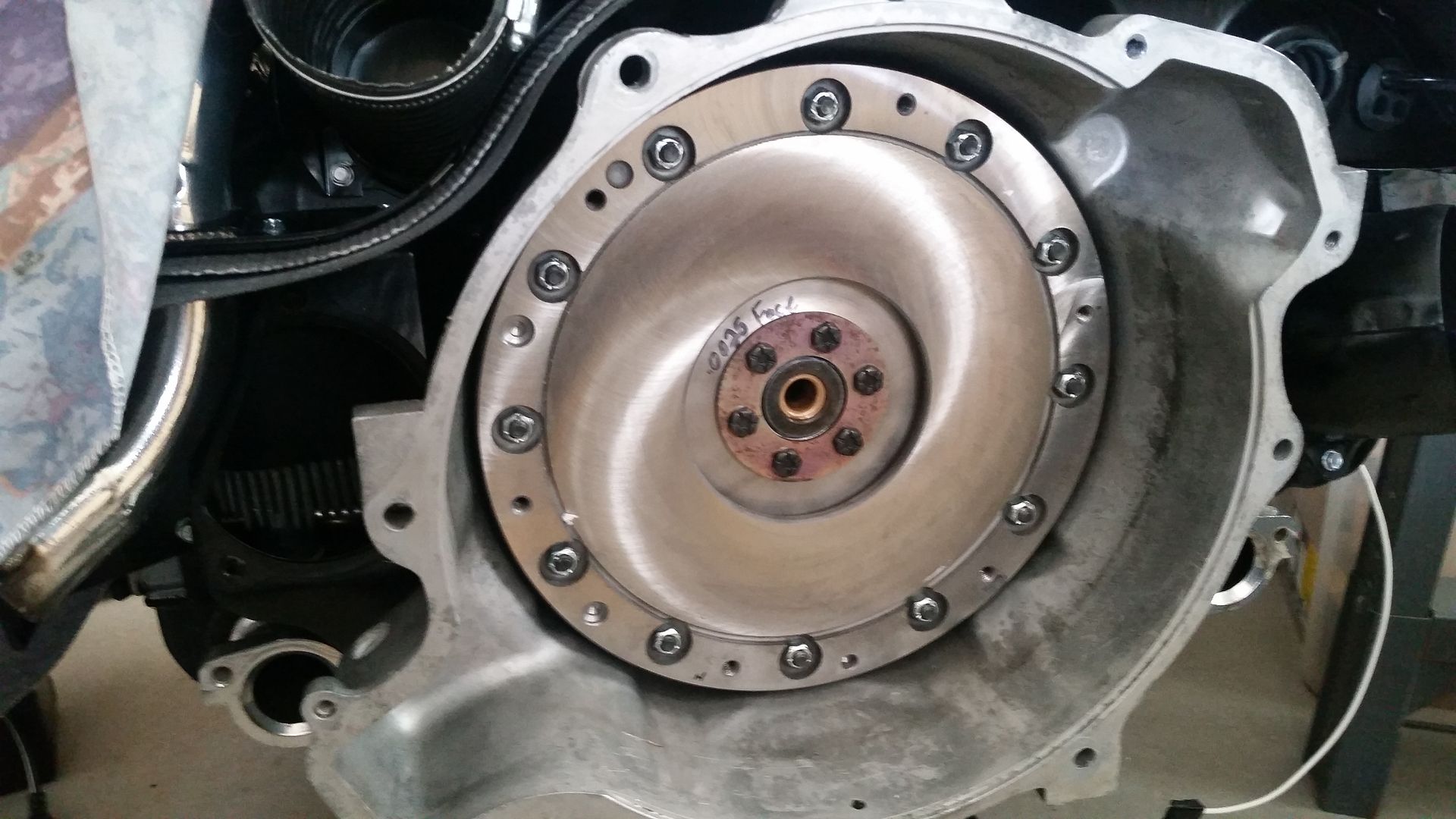

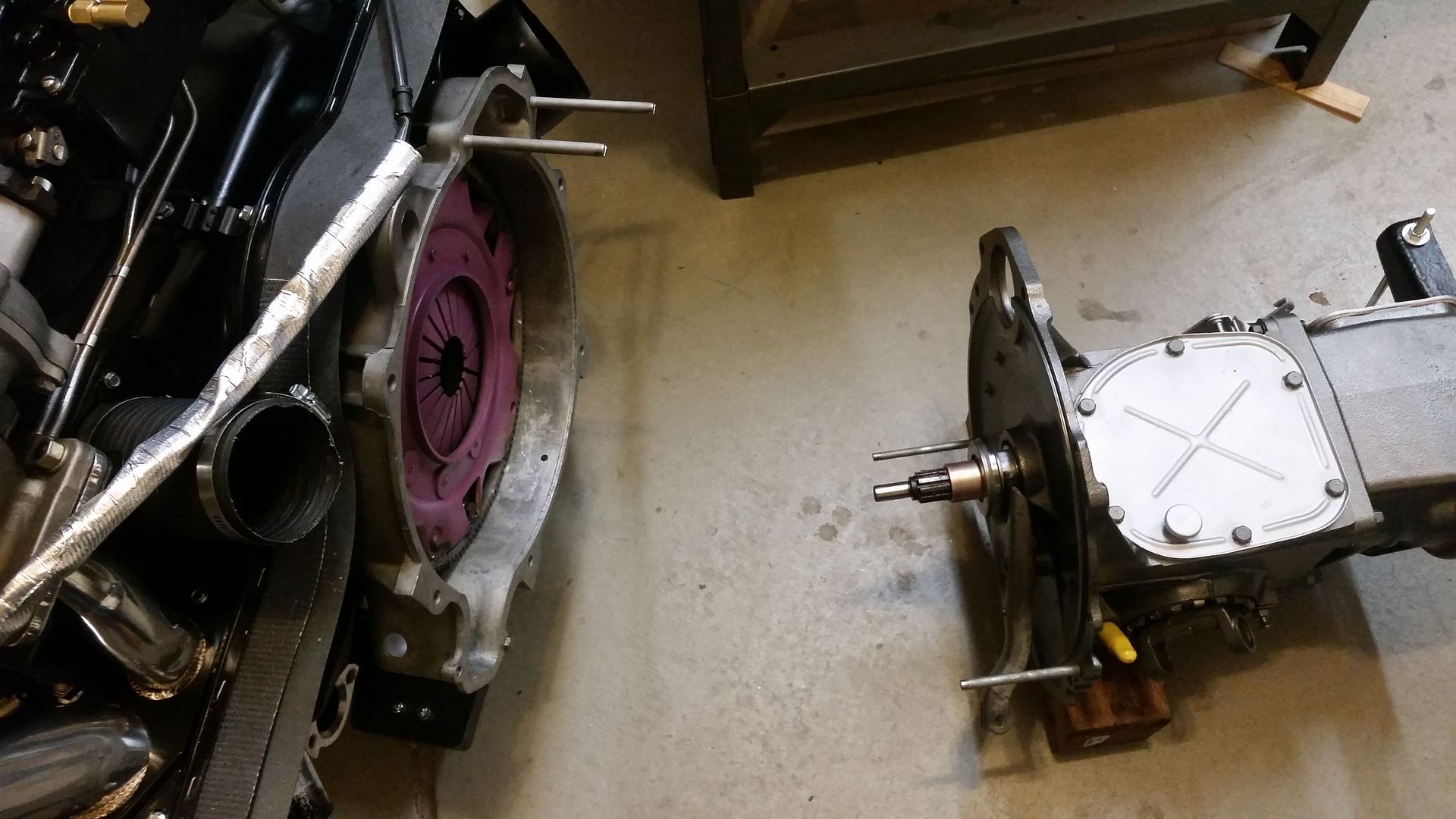

The pics I have of it before assembly are below. Unfortunately I did not measure the disc thickness.













Nick
_______________________________________________________________________
1964 Monza Spyder Convertible #435 - Rotisserie restored - SOLD ON BRING A TRAILER 4/30/2019 - Check out my restoration thread here: [corvaircenter.com]
Thanks to all the awesome CCF, CF, COG, and CORSA members who helped me with the restoration!
Other fun stuff - Porsche 911 GT3 - Trailered track monster for HPDE and Autocross events.
Northern Colorado, USA



Edited 1 time(s). Last edit at 02/10/2016 10:52AM by Nickshu.

Options: ReplyQuote
Re: Nickshu's '64 Spyder Restoration Thread
Posted by: steve c goodman ()
Date: February 10, 2016 11:38AM

Riveted center disc generally contacts flywheel bolts on late flywheels.

best wishes, Steve
Rear Engine Spec. Inc. Golden, Colo.

1962 spyder 3.0L turbo---1965 Crown V8
1967 monza 110/4---1968 monza 110/4
1971 amante gt 110/4
CORSA/RMC/PPCC/V8 Registry

Options: ReplyQuote
Re: Nickshu's '64 Spyder Restoration Thread
Posted by: Mel ()
Date: February 10, 2016 12:13PM

Way too much grease on input spline areaeye popping smiley

Orangeville, Ontario. CANADA

Options: ReplyQuote
Re: Nickshu's '64 Spyder Restoration Thread
Posted by: Mel ()
Date: February 10, 2016 12:15PM

Technically that is the wrong throw out bearing too sad smiley

Orangeville, Ontario. CANADA

Options: ReplyQuote
Re: Nickshu's '64 Spyder Restoration Thread
Posted by: Timothy Shortle ()
Date: February 10, 2016 12:19PM

I think Mel has something there. This is supposed to have the taller bearing.
AMAZING WORK Nick. I wish you would hurry up and get this done. I want you to work on my car next!

Options: ReplyQuote
Re: Nickshu's '64 Spyder Restoration Thread
Posted by: Mel ()
Date: February 10, 2016 12:27PM

No , I think the short bearing is correct, I will get a picture of the correct bearing. gotta go to barn and get one smiling smiley

Options: ReplyQuote
Re: Nickshu's '64 Spyder Restoration Thread
Posted by: steve c goodman ()
Date: February 10, 2016 12:31PM

Tim release brng is correct for late parts. Doubt that lube on splines is the cause, look at pic of disc on input shaft.

best wishes, Steve
Rear Engine Spec. Inc. Golden, Colo.

1962 spyder 3.0L turbo---1965 Crown V8
1967 monza 110/4---1968 monza 110/4
1971 amante gt 110/4
CORSA/RMC/PPCC/V8 Registry

Options: ReplyQuote
Re: Nickshu's '64 Spyder Restoration Thread
Posted by: Mel ()
Date: February 10, 2016 12:37PM

Lube isn't causing clutch not to release BUT may in the future get on the friction surfacessad smiley that would be bad sad smiley

Options: ReplyQuote
Re: Nickshu's '64 Spyder Restoration Thread
Posted by: Nickshu ()
Date: February 10, 2016 12:43PM

Look on page 111 of Clarks catalog. They have a table of TO bearing heights. Says the taller bearing is 60-63 and shorter bearing is 64-69. ????

Nick
_______________________________________________________________________
1964 Monza Spyder Convertible #435 - Rotisserie restored - SOLD ON BRING A TRAILER 4/30/2019 - Check out my restoration thread here: [corvaircenter.com]
Thanks to all the awesome CCF, CF, COG, and CORSA members who helped me with the restoration!
Other fun stuff - Porsche 911 GT3 - Trailered track monster for HPDE and Autocross events.
Northern Colorado, USA

Options: ReplyQuote
Re: Nickshu's '64 Spyder Restoration Thread
Posted by: Nickshu ()
Date: February 10, 2016 12:48PM

steve c goodman Wrote:
-------------------------------------------------------
> Riveted center disc generally contacts flywheel
> bolts on late flywheels.


As in interference?

Nick
_______________________________________________________________________
1964 Monza Spyder Convertible #435 - Rotisserie restored - SOLD ON BRING A TRAILER 4/30/2019 - Check out my restoration thread here: [corvaircenter.com]
Thanks to all the awesome CCF, CF, COG, and CORSA members who helped me with the restoration!
Other fun stuff - Porsche 911 GT3 - Trailered track monster for HPDE and Autocross events.
Northern Colorado, USA

Options: ReplyQuote
Re: Nickshu's '64 Spyder Restoration Thread
Posted by: Wagon Master ()
Date: February 10, 2016 12:58PM

[corvaircenter.com]

They've pretty much covered everything about discs here.

'29 Ford Model A Tudor
'61 700 Lakewood 110 4 speed
'69 Monza Convert. 140 Auto.
'70 Dodge Challenger R/T 440 4 speed

Been aircooled since 1973
Northwest Ohio

Options: ReplyQuote
Re: Nickshu's '64 Spyder Restoration Thread
Posted by: Mel ()
Date: February 10, 2016 01:04PM

Here are some pictures of the correct TO bearing for a diaphragm pressure plate used in a Corvair , the flat TO bearing that they all sell you these days is incorrectsad smiley The flat bearing is really only correct for 3 finger Long, and Borg Beck pressure plates.I only use this style, never had a problem with releasing.They sell you the incorrect one because they really don't care if it's correct or not, sad smiley they just want the $$$$$$ eye popping smiley

Orangeville, Ontario. CANADA

Attachments:

Options: ReplyQuote
Re: Nickshu's '64 Spyder Restoration Thread
Posted by: steve c goodman ()
Date: February 10, 2016 01:30PM

Sorry Mel that is early flat finger release brng. Late bent finger is what is pictured on the diff for bent finger diaphragm which is correct for his flywheel/cover.

best wishes, Steve
Rear Engine Spec. Inc. Golden, Colo.

1962 spyder 3.0L turbo---1965 Crown V8
1967 monza 110/4---1968 monza 110/4
1971 amante gt 110/4
CORSA/RMC/PPCC/V8 Registry

Options: ReplyQuote
Re: Nickshu's '64 Spyder Restoration Thread
Posted by: Timothy Shortle ()
Date: February 10, 2016 01:34PM

Yes, Steve is correct. Mel + I are incorrect. The early flat PP needs the taller bearing. Nick, did you put your disc on the shaft and then put your shaft into the pilot bushing (and see if the disc when pushing it into the flywheel rubs on the flywheel bolts)?

Options: ReplyQuote
Re: Nickshu's '64 Spyder Restoration Thread
Posted by: Mel ()
Date: February 10, 2016 02:30PM

steve c goodman Wrote:
-------------------------------------------------------
> Sorry Mel that is early flat finger release brng.
> Late bent finger is what is pictured on the diff
> for bent finger diaphragm which is correct for his
> flywheel/cover.


I never ever use a flat TO brg on any Corvair diaphragm clutch whether it is early or late style pressure plate, you may get it to work most of the times , but it's not correct.This is why some 64 clutches will not release properly.Suit yourself eye rolling smileybut I like to only put the clutch in once and not have a comebackdrinking smiley

Orangeville, Ontario. CANADA

Options: ReplyQuote
Re: Nickshu's '64 Spyder Restoration Thread
Posted by: bmarsh52 ()
Date: February 10, 2016 02:37PM

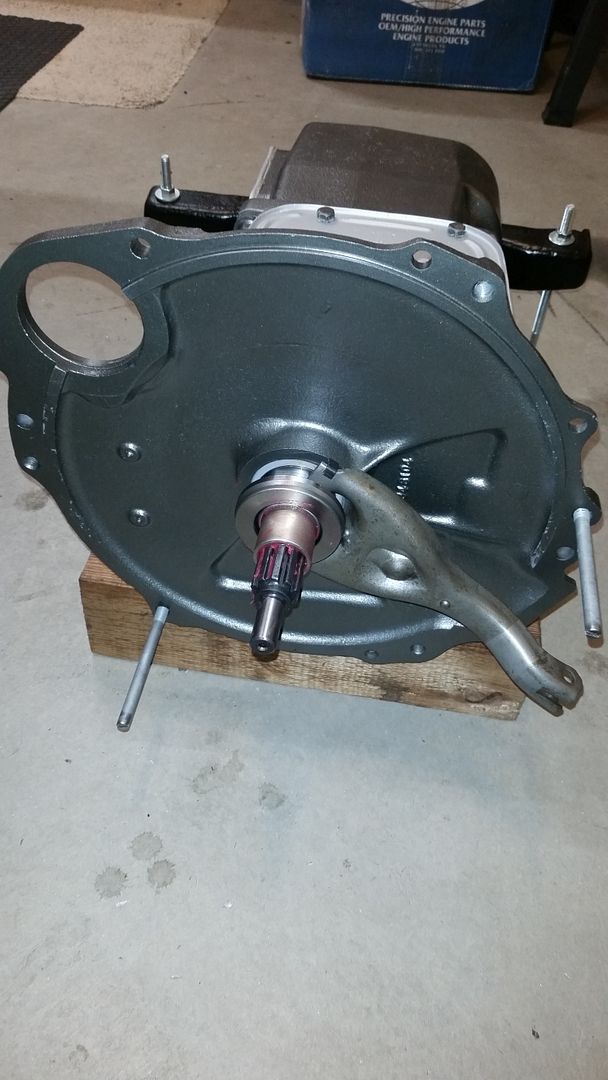

Maybe its the angle of the photos but it looks to me like the fork is not engaged in the groove of the TOB in the first two photos. Looks like it's behind the flange on the diff side.
